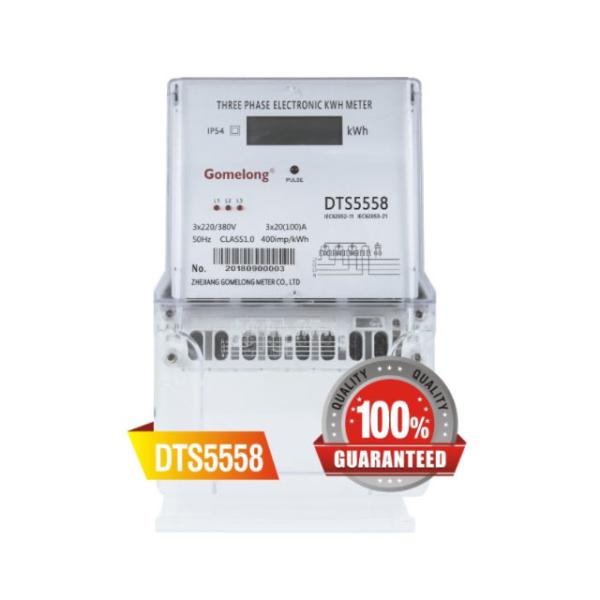

Gomelong DTS5558 3*230V/400V Kwh Meter Three Phase Three wire Electric KWh meter pcire

Name: Gomelong DTS5558 3230V400V Kwh Meter Three Phase Three wire Electric KWh meter pcire
Brand: Gomelong
Price: 14.00 USD

Wholesale Gomelong DTS5558 3*230V/400V Kwh Meter Three Phase Three wire Electric KWh meter pcire from china suppliers

Place of Origin : Zhejiang, China

Brand Name : Gomelong

Model Number : DTS5558

Display Type : Analog and Digital

Phase : Three Phase

Measuring Energy Range : 0-999999.99 KWh

Accuracy Class : Class 1

Output Voltage : 3*230/400V

Operating Temperature : -20℃-40℃

Dimensions : 213mm*141mm*68mm

Meter constant : 400imp/kW.h

Safety performance : long termainal cover protect

Rated current : 3*5(100)A

Standard : IEC62053-21

Certificate : CE ISO9001

Color : White

Frequency : 50HZ/60HZ

warrenty : 3years

Packaging Details : standard export package

Port : Ningbo

Supply Ability : 100000 Piece/Pieces per Month

Price : $14.00 - $18.00/Pieces

Contact Now

MASS_APP4_1159_BEGIN

Gomelong DTS5558 3*230V/400V Kwh Meter Three Phase Three wire Electric KWh meter pcire

MASS_APP4_1159_END

Gomelong DTS5558 3*230V/400V Kwh Meter Three Phase Three wire Electric KWh meter pcire

1.qucik details

Model DTSD5558 three phase four wire electronic multifunction energy meter is a kind of new style three phase four wire multifunction energy meter.The meter completely accord with relevant technical requirements of class 1 three phase active energy meter stipulated in international standard IEC 62053-21 and class1 three phase reactive energy meter in international standard IEC 62053-23. It can accurately and directly measure 50Hz or 60Hz active energy consumption from three phase four wire AC electricity net, This meter has LCD monitors shows the active energy power consumption, and there are far infrared and RS485 communication module in it. It has following features: Good reliability, small volume, light weight, specious nice appearance, convenient installation, etc.

2.Features

♦ Measurement of Import/Export active energy, current energy balance, Instant voltage/current/power

♦ PLC, Rs485, Infrared interface

♦ Event record: Cover open detection, Reverse current, Fraud

3.Technical Parameters

Specification		DTS5558L	DTS5558
Accuracy	Active	Class1.0	Class1.0
Accuracy	Reactive	Optional	Optional
Voltage	Rated	3x57.7/100V,3x220/380V 3x230/400V,3x240/415V	3x57.7/100V,3x220/380V 3x230/400V,3x240/415V
	Range	0.9Un~1.1Un	0.9Un~1.1Un
	Limit	0.8Un~1.2Un	0.8Un~1.2Un
Frequency		50/60Hz	50/60Hz
Current	Range	1.5(6), 5(30), 10(50), 15(90), 20(100), 5(40), 5(100)A	3x1.5(6), 3x 5(30), 3x 10(50), 3x 15(90), 3x 20(100), 3x 5(40), 3x 5(100)A
Starting Current		0.4%Ib	0.4%Ib
Constant	Active	1600imp/kWh	1600imp/kWh
Constant	Reactive	\	\
Display	Type	LCD	Register
Display	Digit	6+1	6+1
Power Consumption	Voltage Circuit	≤0.8W,10VA	≤0.8W,10VA
Power Consumption	Current Circuit	≤4VA	≤4VA
Communication	Interface	Optical/Infrared/RS485 (Optional)	Optical/Infrared/RS485 (Optional)
Communication	Protocol	MODBUS,DLT/645,IEC1107	MODBUS,DLT/645,IEC1107
Temperature	Working Temperature	-45℃~+55℃	-45℃~+55℃
Temperature	Storage Temperature	-40℃~+70℃	-40℃~+70℃
Humidity		≤90%	≤90%
Protection		IP54	IP54

Dimension&wiring Diagram
